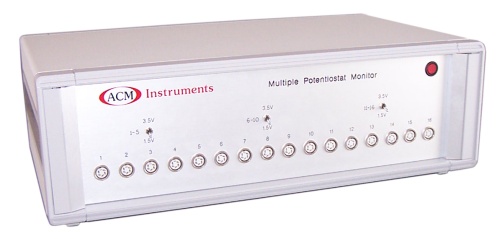

Long term testing at fixed potentials is vital in many branches of corrosion, coatings, Cathodic protection and electrochemistry. This is why our Pot 16 instrument is one of our most popular and boasts big name users such as Bredaro Shaw. The Pot 16 offers 16 individual potentiostats (number of channels can be determined by your needs). Each channel has a fixed current measurement range, selected on purchase for the type of testing to be performed. The standard range is 350mA with a resolution of 5 micro Amps.

Up to 4 fixed potentials may be ordered and allocated between the 16 channels at no extra cost. For example channels 1 to 8 could be set to -1.5 V, channels 9 to 11 set to -3 V, channel 12 to 14 set to -3.5 V and 15 to 16 set at -4 V. These potentials are set on internal 25 turn trimming potentiometers

To increase the value of these tests both current and voltage are monitored and stored using very high accuracy internal voltmeters. The voltage should stay constant at the set potential but if this is not the case it is usually an indication of problems with the cell (for example a bubble in the Lugin probe). This attention to detail and understanding of experimentation extends throughout the range of ACM equipment.

All ACM Instruments come with a two year warranty which may, at low cost, be increased to five years for peace of mind.

Full specifications  POT 16 DATASHEET

[adobe acrobat is required to view pdf documents]

If you wish to purchase a Pot 16, discuss options, or perhaps request a quotation please phone, email or fax Ray Gill, he's always here and ready to help.

Included Accessories

Install CD	Serial Adaptor	Serial Cable	Electrode Cables	Mains Cable
