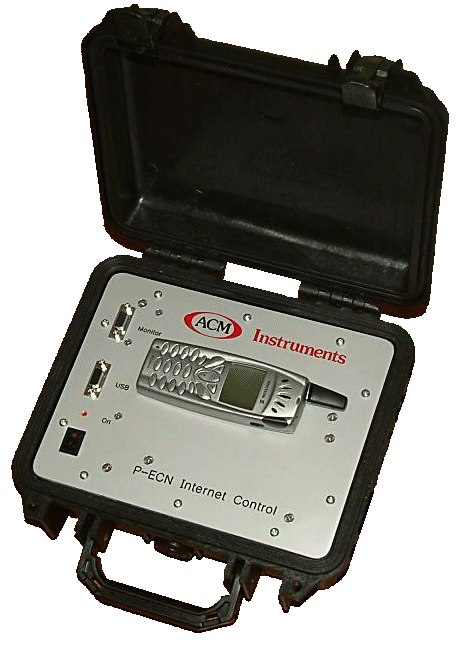

| The Field Unit is
designed to operate in remote locations with or without user
intervention. A built in PC (mini computer below the panel) enables the Field Unit to operate independently, add a mobile
phone and the Field Unit can be controlled from anywhere in the
World, collected data is uploaded at scheduled intervals.
The machine it's self is small, light and very
tough, packed with a 700 mA potentiostat, a 700 mA auto ranging ZRA, an 18 bit sweep generator, two 24 bit ADC's, a
DSP, fully functional mini PC (running Windows 2000 or XP), an
isolating DC:DC converter all into an underwater diver's case, strong enough to drive over with a Land Rover yet as small as a lunch box.
Developed to compliment L.C.M.TM
technique, this Localized Corrosion Monitoring (L.C.M.TM) technique has demonstrated its capability in real-time
corrosion monitoring of various types of localized corrosion in a number
of applications (e.g. oil/gas production, refineries, water treatments).
The technique is based on the current and potential
measurements on one-working
electrode in a three-electrode configuration.
We provide all the popular DC tests of Cyclic
Voltammetry, Linear Polarisation Resistance, Potentiostatic, Current & Voltage Noise, plus the Sequencer and Analysis. The
Field Unit has all the precision and accuracy of a laboratory instrument but can be used anywhere, in any weather.
 Full specifications and interesting options
FIELD UNIT DATASHEET
[adobe
acrobat is required to view
pdf documents]
Software Overview Sequencer
and Data Collection Techniques
If you wish to purchase a Field Unit, discuss options, or perhaps request a
quotation please phone, email or fax Ray
Gill, he's always here and ready to help.
Included Accessories
Optional Extras
[ L.C.M.TM
Technique | Extra Channels |
Bubble
Test software | Voltage Input |
Internet Control | 5 Year Warranty ]
|
|
